Model No.: Stud welding gun
Brand: JINDA
Transportation: Ocean,Land
Place of Origin: CHINA
Port: ShangHai,NingBo

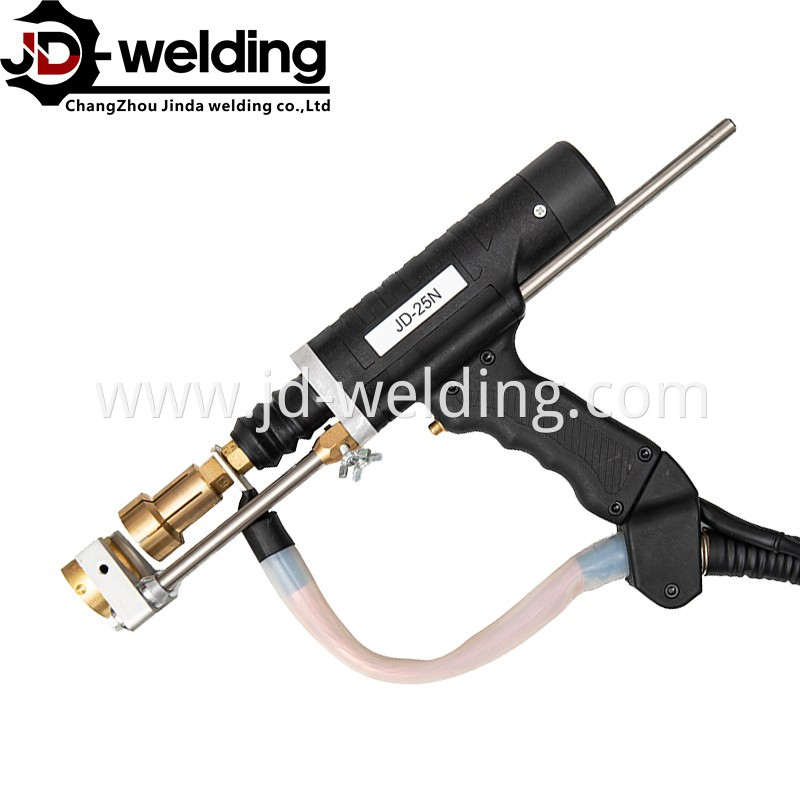

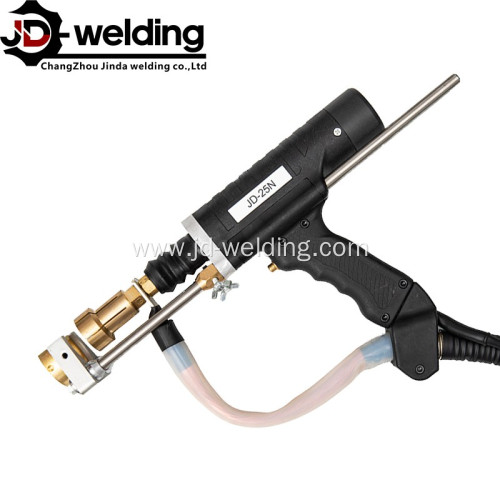

Stud Welding Gun, JD-25N, 8-25MM
Ideal for welding shear connectors SD 16-25 mm Ideal for through-deck-welding td
DRAWN ARC stud with ceramic ferrule
1.0 Intrduction: The modelJD-25N is a light Stud Welding gun, especially for studs ø 16 – 25 mm Ideal for welding shear connectors SD 16-25mm Ideal for through-deck-welding td Most suitable for long shear studs Adjustable hydraulic plunge damper Standard support with 2 legs Body: fibre-glass reinforced polyamide Lifting ring system with length compensation up to 8mm Control cable plug (4 wire) Optimal Integrated shielding gas device We are a manufacturer of stud welding machines, we have a wide range of products, Stud Welding、Weld Studs、Mig Mag Co2、Tig Mma etc. We look forward to your information. 2.0 Product parameters: 3.0 4.0 Packaging And Transportation:
Model: JD-25n Stud range: 3mm-25mm Hydraulic Damper: yes adjustable lift assemble: NO Lift setting: 0-8mm Lift coil voltage: 60V Control cable port: 4 Control cable: 4*1.0mm2 Welding cable:
120mm2
Weight: 2kg
Product Categories : Stud Welding > Stud Welding Gun
Not listed dimensions and materials available upon request.
4.0 Packaging And Transportation:
5.0 Certificates:
