Product description
Energy storage stud welding gun
Studs with ceramic ferrules ø 4 - 16 mm Ideal for short cylce stud welding ø 3 - 10 mm Best for stud welding using shielding gas ø 3 – 12 mm.
1.0 Intrduction:

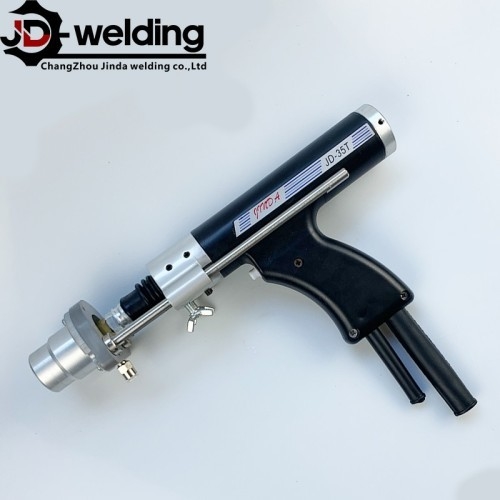

The model JD-35T is a robust stud welding gun, designed for welding of threaded studs with ceramic ferrules ø 4 - 16 mm
Ideal for short cylce stud welding ø 3 - 10 mm
Best for stud welding using shielding gas ø 3 – 12 mm
Lifting range 1 – 4,5 mm
Standard support with 2 legs
High repeatability
Body made of fibre-glass reinforced polyamide
Control cable plug (4 wire)
Optional Integrated shielding gas device
We are a manufacturer of stud welding machines, we have a wide range of products, Stud Welding,Weld Studs,Mig Mag CO2,TIG MMA etc. We look forward to your information.
2.0 Product parameters:
Model: | JD-35T |
Stud range: | 3mm-16mm |
Hydraulic Damper: | NO |
adjustable lift assemble: | NO |
Lift setting: | 0-4.5mm |
Lift coil voltage: | 60V |
Control cable port: | 4 |
Control cable: | 4*1.0mm2 |
Welding cable: | 35mm2 OR 50mm2 |
Weight: | 1kg |
3.0
