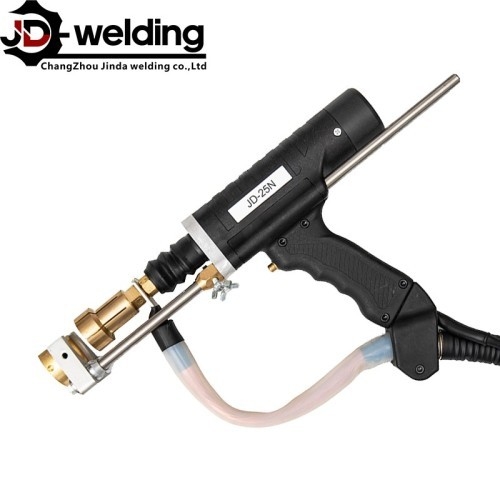

Stud Welding Gun JD-25N 8-25MM Stud Gun With Hydraulic Damper
  • Stud Welding Gun JD-25N 8-25MM Stud Gun With Hydraulic Damper

Stud Welding Gun JD-25N 8-25MM Stud Gun With Hydraulic Damper

Place of Origin China
Brand Name JinDa
Product Details
Model:
JD-25n
Stud Range:
3mm-25mm
Hydraulic Damper:
Yes
Lift Setting:
0-8mm
Lift Coil Voltage::
60V
Control Cable Port::
4
High Light:

8-25MM stud gun

,

Stud welding gun JD-25N

,

Stud welding gun With Hydraulic Damper

Payment & Shipping Terms
Payment Terms
TT
Product Description

Product description

Stud welding gun, JD-25N, 8-25MM

Ideal for welding shear connectors SD 16-25 mm Ideal for through-deck-welding td

Drawn arc stud with ceramic ferrule



1.0 Intrduction:



The model JD-25N is a light stud welding gun, especially for studs ø 16 – 25 mm

Ideal for welding shear connectors SD 16-25mm

Ideal for through-deck-welding td

Most suitable for long shear studs

Adjustable hydraulic plunge damper

Standard support with 2 legs

Body: fibre-glass reinforced polyamide

Lifting ring system with length compensation up to 8mm

Control cable plug (4 wire)

Optimal Integrated shielding gas device

We are a manufacturer of stud welding machines, we have a wide range of products, Stud Welding,Weld Studs,Mig Mag CO2,TIG MMA etc. We look forward to your information.



2.0 Product parameters:



Model: JD-25n
Stud range: 3mm-25mm
Hydraulic Damper: yes
adjustable lift assemble: NO
Lift setting: 0-8mm
Lift coil voltage: 60V
Control cable port: 4
Control cable: 4*1.0mm2
Welding cable: 120mm2
Weight: 2kg





3.0

Stud Welding Gun



4.0 Packaging And Transportation:
