Stud Welding Gun JD-25 Shear Stud Gun 60V Stud Range 3mm-25mm
  • Stud Welding Gun JD-25 Shear Stud Gun 60V Stud Range 3mm-25mm

Stud Welding Gun JD-25 Shear Stud Gun 60V Stud Range 3mm-25mm

Place of Origin China
Brand Name JinDa
Product Details
Model::
JD-25I
Stud Range::
3mm-25mm
Hydraulic Damper::
Yes
Adjustable Lift Assemble::
Opitonal
Lift Setting::
0-8mm
Lift Coil Voltage::
60V
High Light:

shear stud gun 60V

,

JD-25 shear stud gun

,

stud welding gun 3mm-25mm

Payment & Shipping Terms
Payment Terms
TT
Product Description

Product description

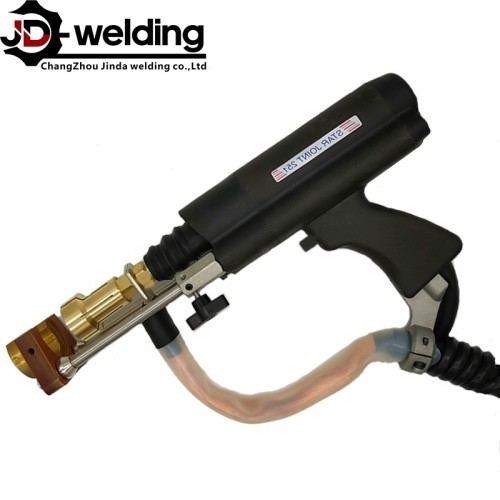

Stud welding gun, JD-25 Shear connector gun

The modelJD-25I is a heavy duty stud welding gun, especially for studs ø 16 – 25 mm Ideal for welding shear connectors SD 16-25mm Ideal for through-deck-welding td

We are a manufacturer of stud welding machines, we have a wide range of products, Stud Welding,Weld Studs,Mig Mag CO2,TIG MMA etc. We look forward to your information.







1.0 Intrduction:



The modelJD-25I is a heavy duty stud welding gun, especially for studs ø 16 – 25 mm

Ideal for welding shear connectors SD 16-25mm

Ideal for through-deck-welding td

Most suitable for long shear studs

Adjustable hydraulic plunge damper

Standard support with 2 legs

Body: fibre-glass reinforced polyamide

Lifting ring system with length compensation up to 8mm

Control cable plug (4 wire)

Optimal Integrated shielding gas device





2.0 Product parameters:



Model: JD-25I
Stud range: 3mm-25mm
Hydraulic Damper: yes
adjustable lift assemble: Opitonal
Lift setting: 0-8mm
Lift coil voltage: 60V
Control cable port: 4
Control cable: 4*1.0mm2
Welding cable: 120mm2
Weight: 2.7kg





3.0



Stud Welding Gun Jd 25 Shear Connector Gun



4.0 Packaging And Transportation:
