Stud Welder ,Drwan arc Stud Welding Machine
1.0 Intrduction:

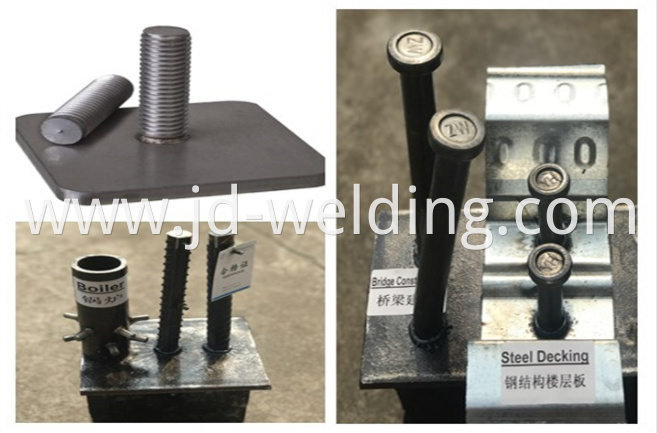

Drawn Arc Stud Welding, or more simply Stud Welding, is the process which quickly joins together a base metal, such as steel, to a fastener. This is done via a controlled electric arc process, which melts the end of the fastener to the base metal. There are many types of Fasteners, which are also known as stud welds, including tapped, unthreaded, and threaded.
We are a manufacturer of stud welding machines, we have a wide range of products, Stud Welding、Weld Studs、Mig Mag Co2、Tig Mma etc. We look forward to your information.
2.0 Product parameters:

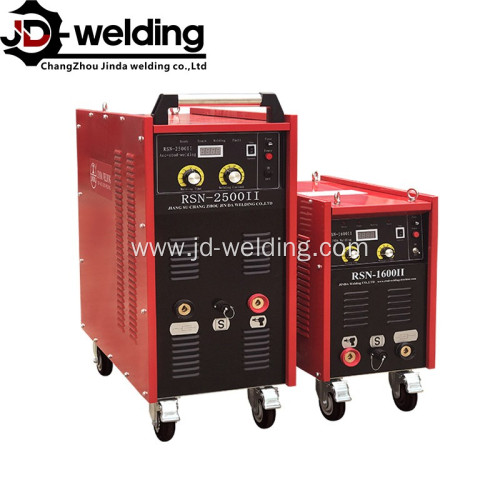

Model | RSN-1600i | RSN-2500i | RSN-3000i |
Input power | 60KVA | 100KVA | 125KVA |
Max working current | 1600A | 2500A | 3000A |
Welding time | 0-2 Adjustable | 0-2 Adjustable | 0-2 Adjustable |
Stud randge | 3mm-16mm | 3mm-25mm | 3mm-32mm |
Production rate | Φ16/ 10pcs per min | Φ22/ 12pcs per min | Φ25/ 10pcs per min |
Weight | 55KG | 100KG | 115KG |
Dimension | 650mm*330mm*320mm | 780mm*380mm*390mm | 800mm*400mm*890mm |
3.0
4.0 Packaging And Transportation:
Product Categories : Stud Welding > DRAWN ARC
Not listed dimensions and materials available upon request.
4.0 Packaging And Transportation:
5.0 Certificates:
